LNG Terminal
Characteristics

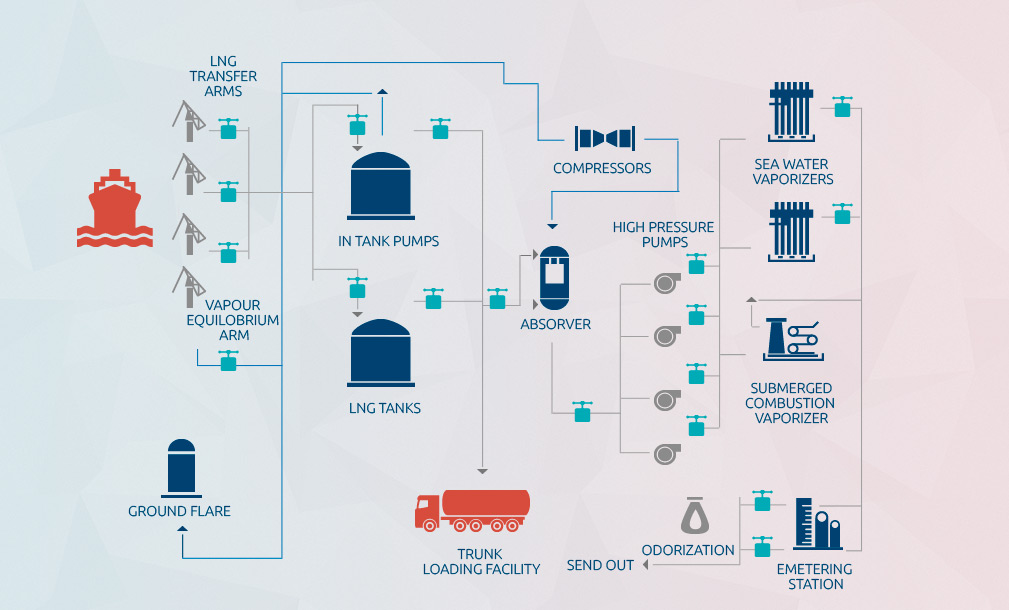

Our Mugardos terminal, at the Ferrol port, began to operate in November 2007. It provides the system with a natural gas capacity of 3.6 bcm (billion cubic meters) per year of natural gas (13% of the Spanish natural gas demand for 2023). Its design stands out for the use of cutting-edge solutions that ensure the efficiency of the terminal. Its berth is suitable for the docking of any gas carrier of the world fleet. The unloading arms are connected to two tanks capable of storing up to 300,000 cubic metres of LNG and keeingp liquefied natural gas at a temperature of -160º C at a pressure close to the atmospheric pressure. The stored LNG can be loaded onto ships or trucks or sent to the regasification facilities of the plant. These facilities achieve the phase transition of the LNG to its gaseous state through two sea water vaporizers or a back-up submerged combustion vaporizer. Subsequently, natural gas is injected into the transmission system.
Tank capacity
2 x 150,000 m³
Vaporizers capacity
3 x160 t/h
Ship unloading capacity
12,000 m³/h
Ship loading capacity
2,000 m³/h

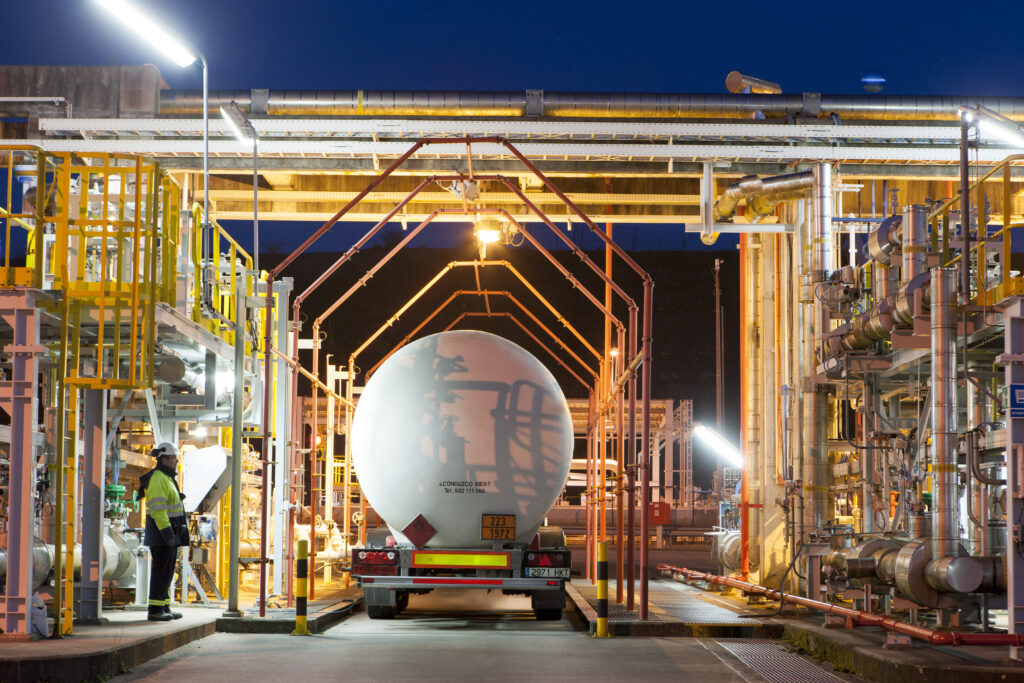

Trucks loading capacity
35 trucks/day
Vessel range capacity
Up to 266,000 m³ subject to compatib.
Measurements station
115.2 GWh/d
Compatible vessels
Of the existing LNG tankers in the world fleet, we can moor those with capacities up to 266,000 m³ subject to compatibility. Below, we list the vessels whose compatibility has been assessed:
If your vessel is no included in our list please contact, our technical staff that will conduct a compatibility study at the shortest.
Since 2013 a regular audit scheme has been in place under the strictest standards of the ship-shore interface such as the Marine Terminal Management and Self Assessment (MTMSA), conducted by the most prestigious companies in accordance with the criteria of the Oil Companies International Marine Forum (OCIMF).
- Adriano Knutsen
- Al Areesh
- Al Daayen
- Al Huwaila
- Al Jasra
- Al Jassasiy
- Al Khor
- Al Marrouna
- Al Rekayyat
- Al Sahla
- Al Thumama
- Al Utouriya
- Al Zubarah
- Amberjac LNG
- Arctic Aurora
- Arctic Discoverer
- Arctic Lady
- Arctic Princess
- Arctic Spirit
- Arctic Voyager
- Arwa Spirit
- Asia Endeavour
- Asia Energy
- Asia Excellence
- Asia Vision
- Barcelona Knutsen
- Berge Arzew
- Bilabo Knutsen
- Bishu Maru
- Bonito LNG
- Boris Davydov
- Boris Vilkitsky
- British Diamond
- British Emerald
- British Innovator
- British Merchant
- British Ruby
- British Shapire
- British Shapphire
- British Trader
- Broog
- BW Lilac
- BW Suez Boston
- BW Suez Everett
- BW Tulip
- Cadiz Knusten
- Castillo de Caldelas
- Castillo de Merida
- Castillo de Villalba
- Catalunya Spirit
- Cheikh El Mokrani
- Christophe de Margerie
- Clean Horizon
- Clean Ocean
- Clean Planet
- Clean Vision
- Cobia LNG
- Cool Explorer
- Cool Runner
- Cool Voyager
- Coral Energice
- Coral Favia
- Coral Fraseri
- Coral Fungia
- Coral Furcata
- Corcovado LNG
- Cubal
- Doha
- Eartic Discoverer
- Eduard Toll
- Energy Confidence
- Energy Glory
- Energy Innovator
- Energy Liberty
- Energy Universe
- Enshu Maru
- Excalibur
- Excel
- Excelerate
- Excellence
- Excelsior
- Explorer
- Express
- Fedor Litke
- Flex Endeavour
- Fuji LNG
- Fuwairit
- Galicia Spirit
- Gallina
- Gaslog Galveston
- Gaslog Georgetown
- Gaslog Santiago
- Gaslog Saratoga
- Gaslog Savannah
- Gaslog Seattle
- Gaslog Shanghai
- Gaslog Singapore
- Gaslog Skagen
- Gaslog Sydney
- Gaslog Warsaw
- Gemmata
- Georgiy Brusilov
- Georgiy Ushakov
- Gimi
- Golar Seal
- Golar Spirit
- Golar Tundra
- Golar Winter
- Hispania Spirit
- Höegh Esperanza
- Höegh Gallant
- Höegh Gannet
- Höegh Giant
- Höegh Grace
- Iberica Knutsen
- Ibra LNG
- Independence
- Kairos
- Khannur
- Kinisis
- Kita LNG
- La Seine
- Lena River
- LNG Abalamabie
- LNG Abjua
- LNG Abuja
- LNG Abuja II
- LNG Adamawa
- LNG Akwa Ibom
- LNG Aquarius
- LNG Aries
- LNG Barka
- LNG Bayelsa
- LNG Benue
- LNG Bonny
- LNG Borno
- LNG Capricorn
- LNG Cross River
- LNG Dubhe
- LNG Edo
- LNG Enugu
- LNG Finima
- LNG Finima II
- LNG Fukurokuju
- LNG Gemini
- LNG Imo
- LNG Jupiter
- LNG Kano
- LNG Lagos
- LNG Leo
- LNG Libra
- LNG Lokoja
- LNG Megrez
- LNG Merak
- LNG Ogun
- LNG Ondo
- LNG Oyo
- LNG Phecda
- LNG Pioneer
- LNG Port – Harcourt II
- LNG Port Harcourt
- LNG River Niger
- LNG River Orashi
- LNG Rivers
- LNG Schneeweisschen
- LNG Sokoto
- LNG Swift
- LNG Taurus
- LNG Virgo
- LNGShips Athena
- LNGShips Manhattan
- Madrid Spirit
- Maram Gas Hector
- Maran Gas Achilles
- Maran Gas Agamemnon
- Maran Gas Alexandria
- Maran Gas Apollonia
- Maran Gas Asclepius
- Maran Gas Coronis
- Maran Gas Delphi
- Maran Gas Efessos
- Maran Gas Hector
- Maran Gas Lindos
- Maran Gas Mystras
- Maran Gas Pericles
- Maran Gas Posidonia
- Maran Gas Sparta
- Maran Gas Spetses
- Maran Gas Troy
- Maran Gas Ulysses
- Maria Energy
- Methane Allson Victoria
- Methane Heather Sally
- Methane Jane Elizabeth
- Methane Lydon Volney
- Methane Nile Eagle
- Methane Rita Andrea
- Methane Shirley Elisabeth
- Milaha Ras Laffan
- Nikolay Urvantsev
- Nikolay Yevgenov
- Nikolay Zubov
- Palu LNG
- Pan Africa
- Pan Americas
- Pan Asia
- Pan Europe
- Patris
- Polar Spirit
- Pskov
- Rías Baixas Knutsen
- Ribera del Duero Knutsen
- Rudolf Samoylovich
- SCF Melampus
- Sean Spirit
- Sestao Knutsen
- Sevilla Knutsen
- SFC Mitre
- Shinshu Maru
- Simaisma
- Traiano Knutsen
- Umm Bab
- Valencia Knutsen
- Velikiy Novgorod
- Vivir Americas LNG
- Vladimir Rusanov
- Vladimir Vize
- Vladimir Voronin
- Woodside Chaney
- Woodside Goode
- Woodside Rogers
- Yakov Gakkel
- Yamal Spirit
- Yari LNG
- Yenisei River
New truck destinatios
To register a new truck destination associated with Reganosa plant, client has to send, via mail to [email protected], the documentation that guarantees the satellite plant complies with current legislation (RD 97/2014 e PD-12). In relation to delegation of signature letter from shipper to loader, only Reganosa models can be used, which can be downloaded at the following link: Reganosa delegation of signature letters.
Work permit software

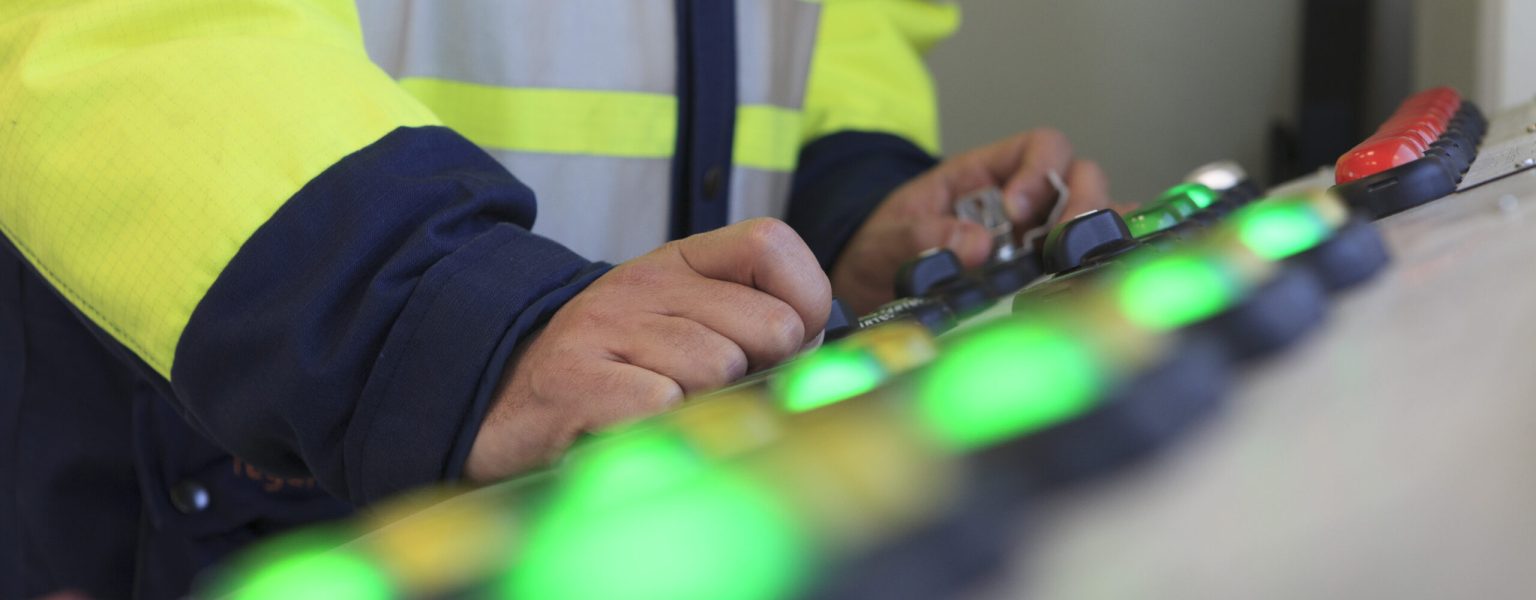

We have developed a work permit management system that ensures the control of interventions in the facilities we operate because safety and efficiency is not only about excellent teams, but also about best practices. Trough this software we ensure that every operation is performed safely and securely and that safety conditions are applied correctly.
Characteristics of the scheme:
- Web application, which can be accessed from any browser.
- Scalable, modifiable and exportable to other services.
- SAP direct read.
